Category: Production

Production Process

Posted on by xdsystem

Below is the scheme of the ship prototype production process

Ship frame assembly
framing assembly
Image result for down arrowLaying of the ship’s shell
Image result for down arrowApplying polyester membrane and resin to the shell
membran dan resin
Image result for down arrowPutty coating on the shell
Image result for down arrowComponent installation
Image result for down arrowand ship trial.

Electrical Components

Posted on by xdsystem

In the operation of this fast patrol boat is a combination of the work of several electrical components that are integrated with each other, including: RadioLink 4ch Digital RCBS with a 2.4 GHz frequency remote control, receiver, 120 Amp ESC, 20 kg of power and DC current 4.8 ~ 6.8 v servo, 2200 kv motor, and Lipo 3 cell (11.1 v) 5500 mAh battery.

Remote ControlS__9084937.jpg

Receiver and ESC
ESC, RECEIVER, AND SWITCH.jpg

Servo

Motor

Battery
wild-scorpion-11-1v-5500mah-45c-3-cell-lipo-battery-for-rc-helicopter-car-truck_640x640.jpg



Materials

Posted on by xdsystem

Selection of the right material is needed in the construction of the ship prototype. The materials used are: 3mm plywood, 2mm balsa wood, polyester membrane, polyester putty, and resin.

3mm PlywoodImage result for 3mm plywood

2mm Balsa Wood
Image result for 2mm balsa wood

Polyester Membrane

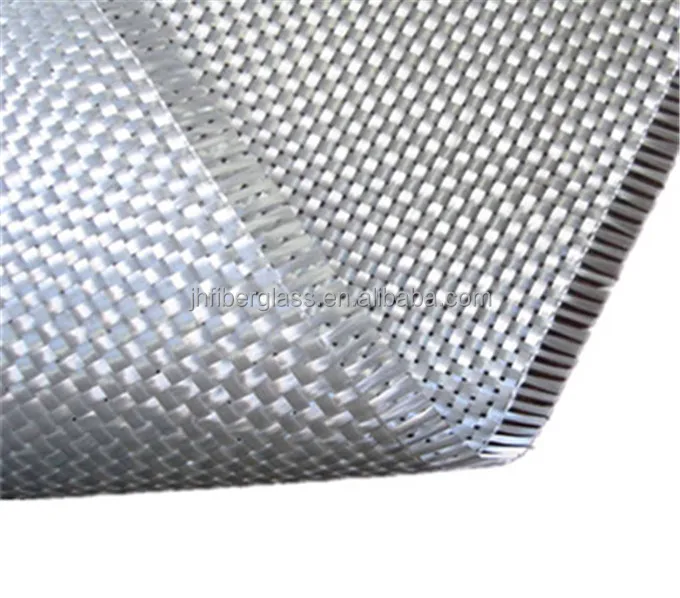

Image result for Polyester Membrane woven roving

Polyester Putty

Resin
Image result for resin butek
